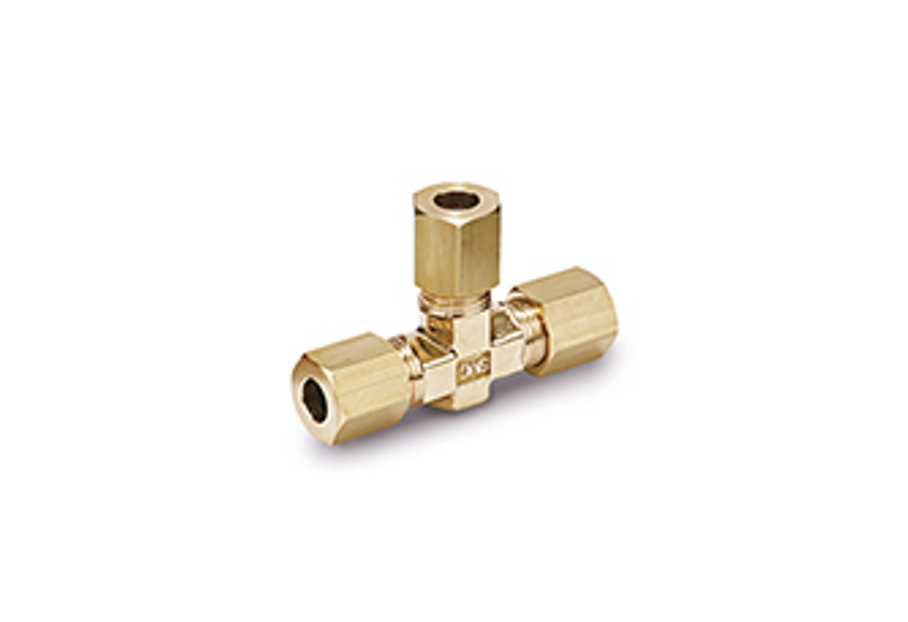

Fittings

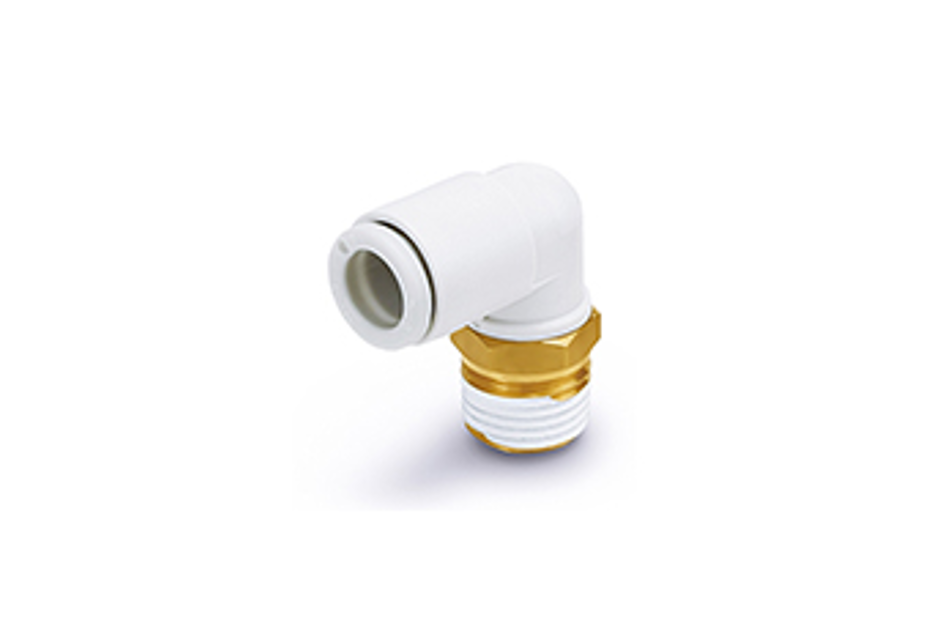

Insert & Miniature Fittings
Rated 4 out of 5
Confined spaces and applications needing an extra reliable retaining

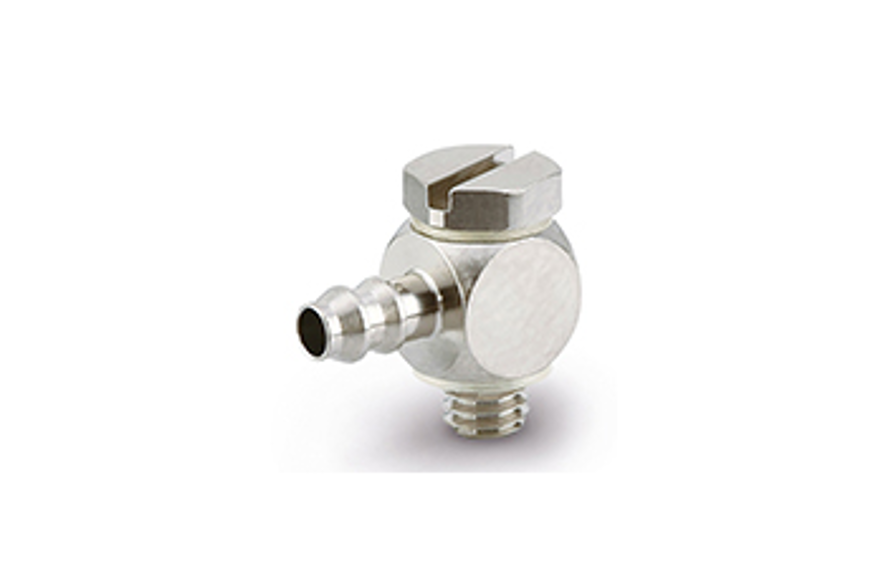

Miniature – M
Rated 4 out of 5
Connections in confined areas

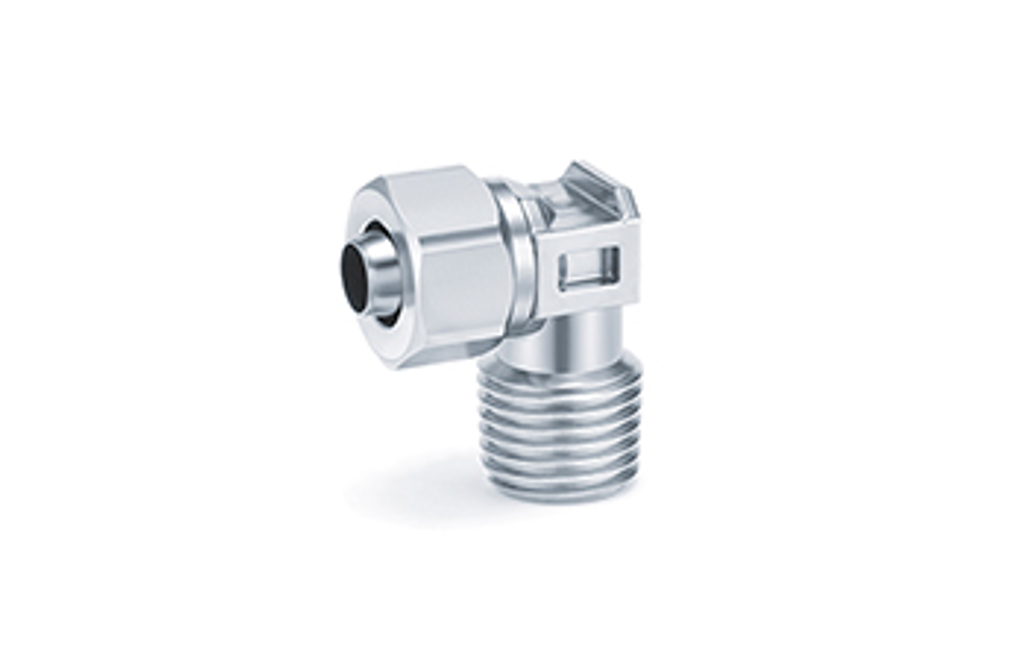

Self Align – H/DL
Rated 4 out of 5
High sealing requirements, rigid tubing, aggressive environments

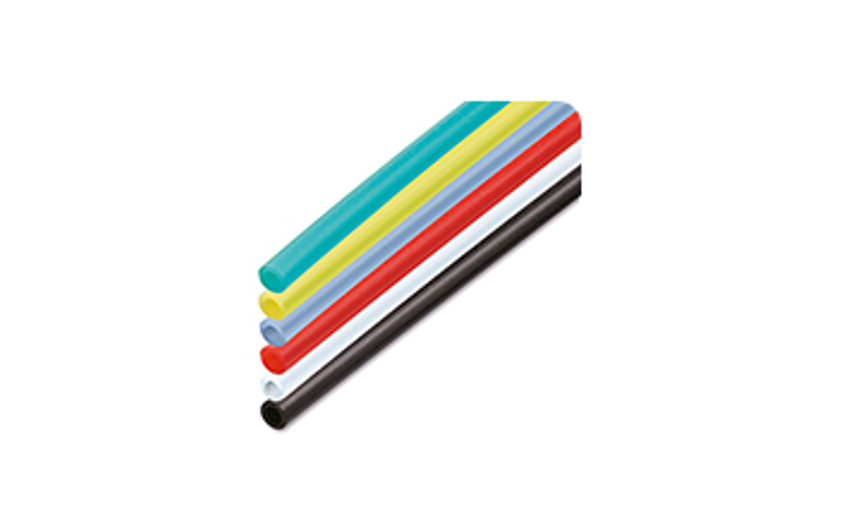

Tubing

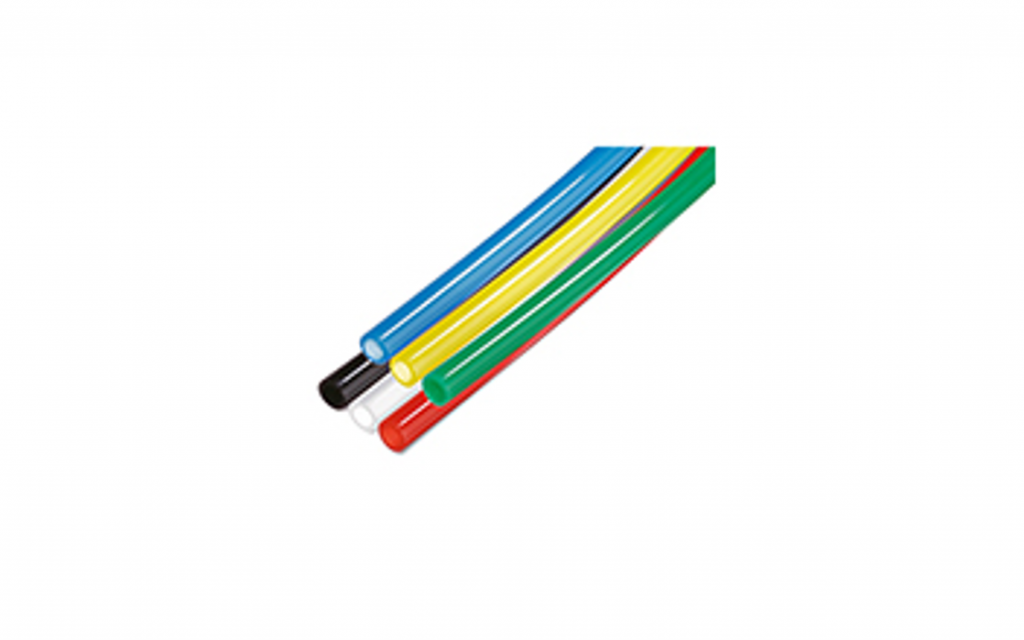

General Use
Rated 4 out of 5
Standard pneumatic applications
Moisture Control
Rated 4 out of 5
To avoid problems derived from condensation in the piping

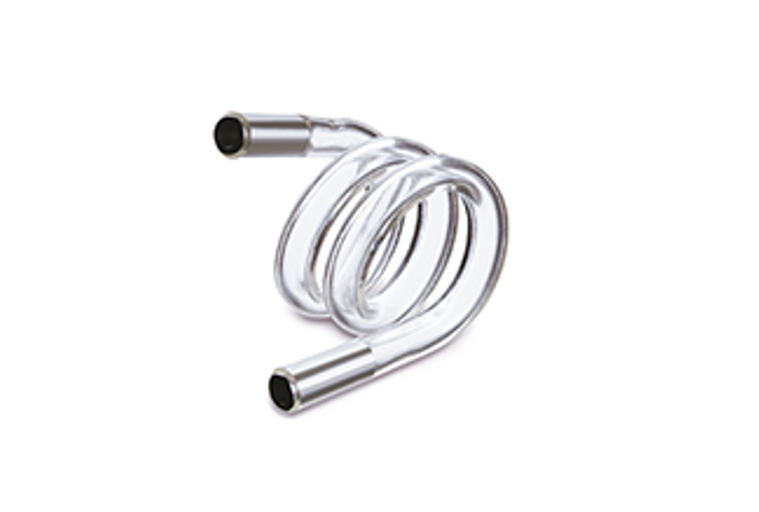

Wear Resistant
Rated 4 out of 5
Applications with mobility of components

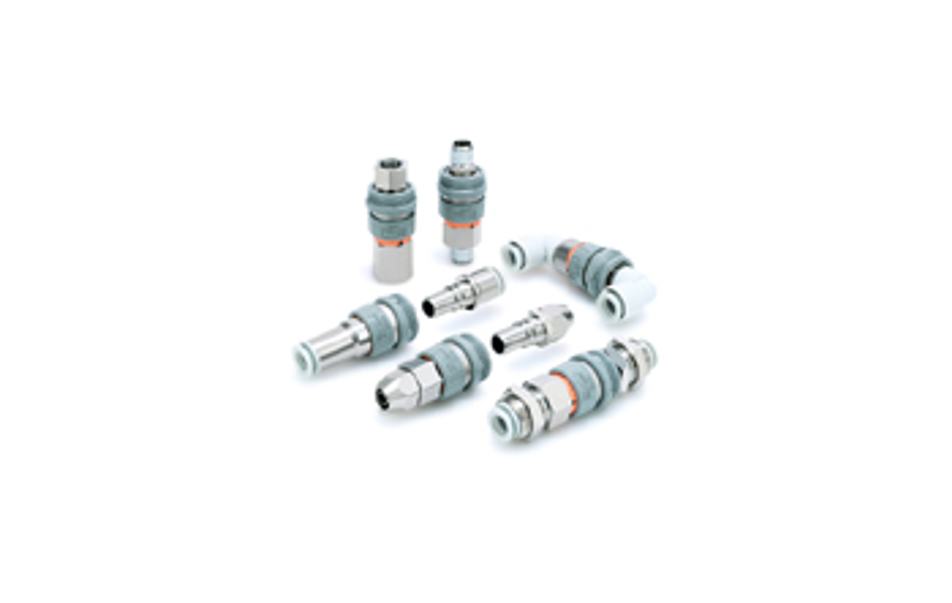

Quick Couplers
KK
Rated 4 out of 5
- S coupler for general purpose with Plug and Socket
- Applicable tubing from Ø 3.2 to Ø 16
- Thread, sizes: M, R, Rc, from M5 to 3/4
- Fluid temperature: -5 to 60 °C, water: 5 to 40 °C
- One-touch fitting type standardized
- With sleeve lock mechanism (Except KK2).
KKA
Rated 4 out of 5

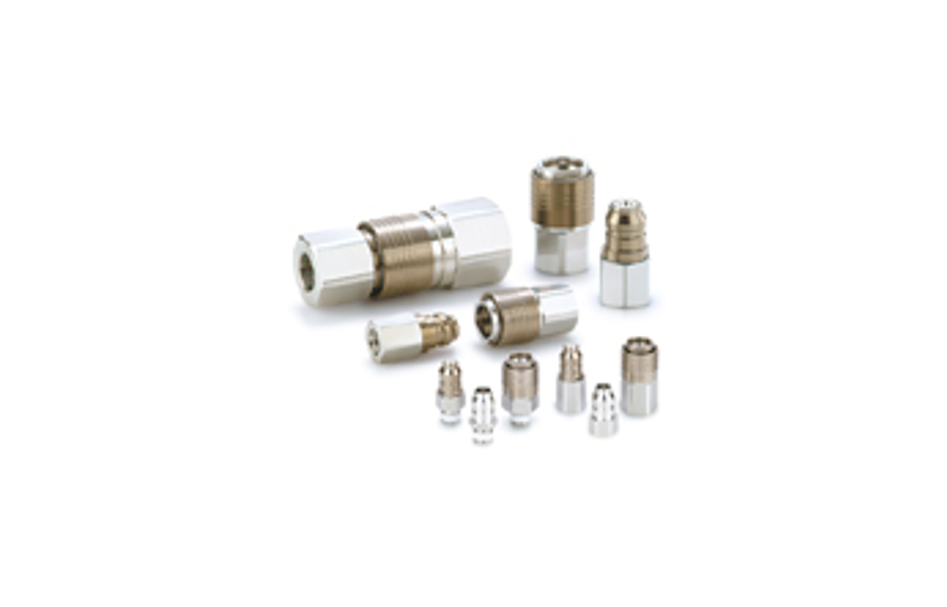

- S coupler with Plug and Socket, body material: Stainless steel 304
- Seal material: Fluoropolymer (special FKM)
- Threads, sizes: R, Rc, from 1/8 to 1 1/2
- Operating temperature: -5 to 150 °C
- Check valve built in to both Plug and Socket
- Grease-free.
KKH
Rated 4 out of 5

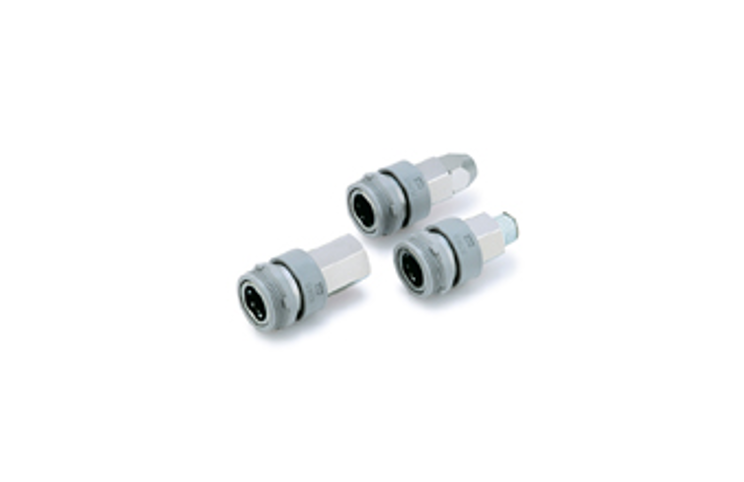

- S coupler for general purpose with Socket
- Thread, sizes: R, Rc, from 1/8 to 1/2
- Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
- Able to absorb ultra-high impact: PBT resin
- Without sleeve lock mechanism.
Accessories

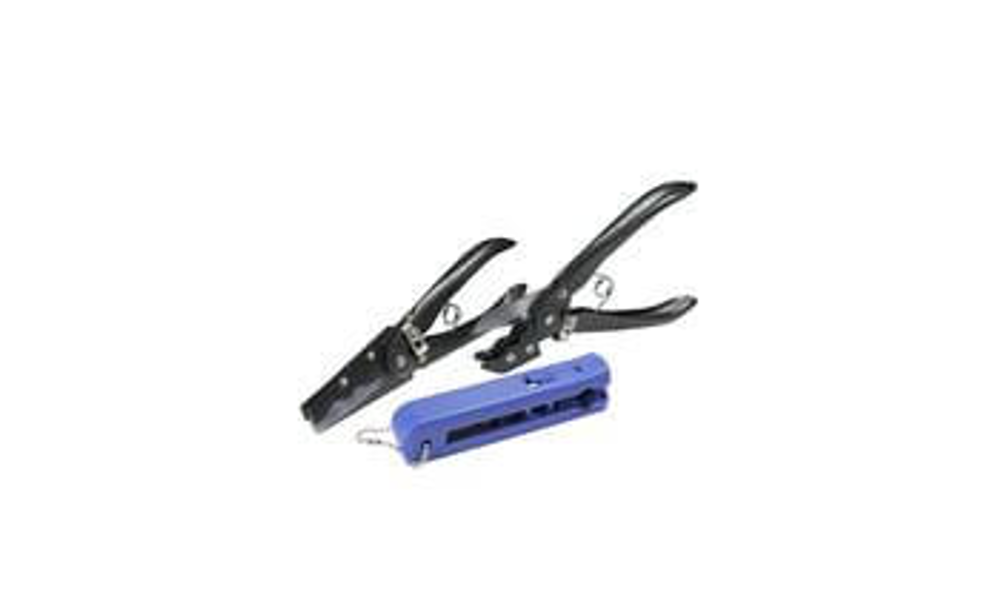

TK
Rated 4 out of 5
- Tube cutter series, TK contains a safety lock feature and is used for cutting tubes of nylon, soft nylon, polyurethane, and other soft plastic tubes of 12mm or less.
TK
Rated 4 out of 5

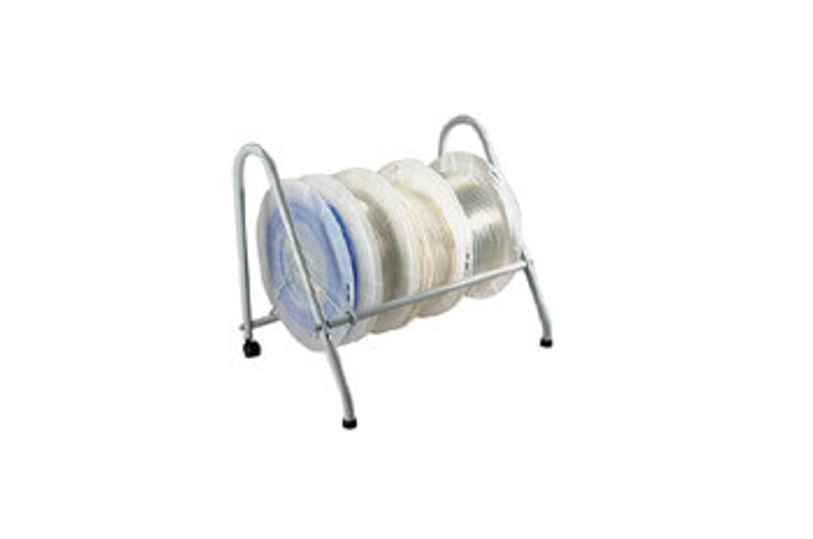

- Tube Reel.
- Applicable tubing size: ø 4, ø 6, ø 8, ø 10, ø 12.

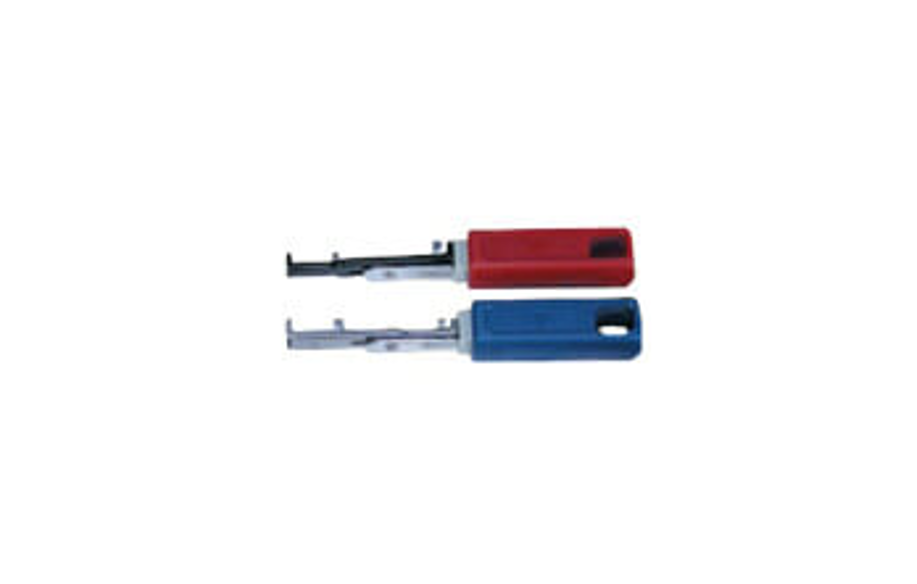

TG
Rated 4 out of 5
- Tube releasing Tool for One-touch fittings mounted in narrow space or on manifolds.
- Applicable tubing: metric size ø 4, ø 6, size in inches ø 1/8, ø 1/4.
- Easy one-hand operation.
