Direct Operated 3/4/5 Port Solenoid Valves
SYJ
The SYJ Valve is an innovative combination of space efficiency and performance superiority which provides real value to the design solution. Whether designed in a manifold or used as a single valve, this small profile increases design flexibility and minimizes space requirements. The SYJ valve utilizes a low power (0.5 watts standard) pilot solenoid design, which dramatically reduces thermal heat generation.
Direct Operated 3/4/5 Port Solenoid Valves

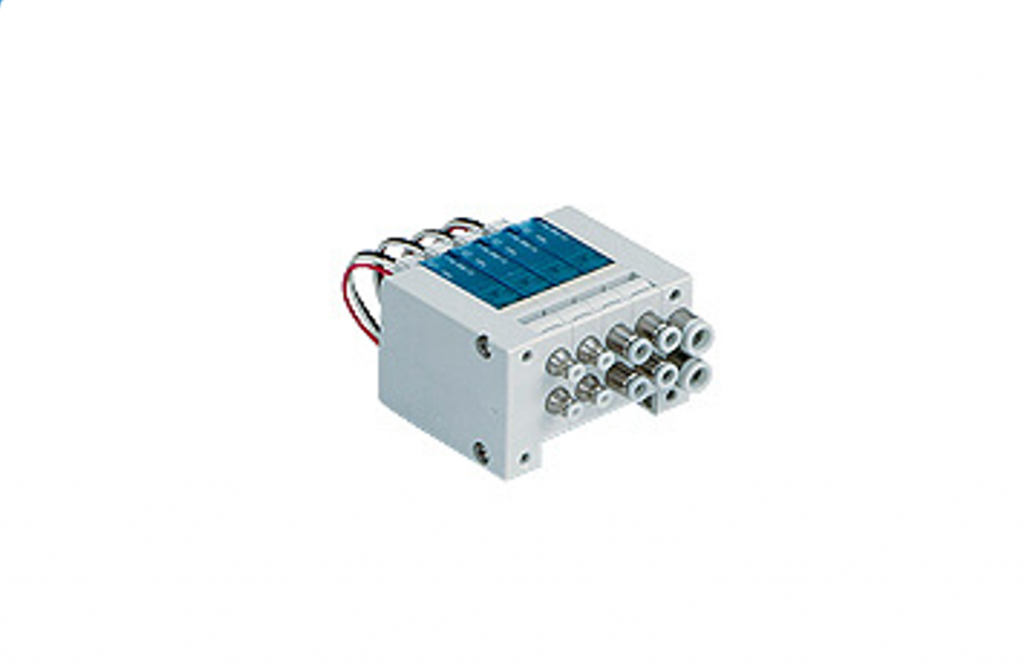

VV100
Following Electronic and Semiconductor Industry requests for a compact manifold unit with integral 3-port solenoid valves, we are pleased to launch our new Series VV100
VT
Large Flow Capacity, yet Compact Size.Low Power Consumption.Suitable for Use in Vacuum Applications.1 Valve, 6 Functions. (Universal Porting)Selective porting can provide 6 valve functions,such as N.C.
VK
Universal porting.Available for N.C. valve, N.O. valve, divider valve, selector valve, etc.Nl/min: 196.Compact/Width 18 X Length 63 (mm).Low consumption 4W.DC (Standard).2W DC (Low wattage style).Applicable for vacuum use –101.2kPa
Mechanical Valves / Hand Valves
VM
The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 18mm².
VHS – NEW
The VHS Series is the latest product to benefit from a design review as part of our investment in R&D to improve the performance and functionality of SMC products, as well as to develop innovations that drive energy savings and deliver competitive advantages for our customers.
XT34-60/67
We have extended our mechanical valve range, with our 5 port foot pedal valve: Series XT34-60/67. With 2 models available, with and without lock, it can be easily operated by foot. It has a flow rate of up to 184 l/min and an operating pressure from 0.15 to 0.9 MPa.
ISO Valves
VS7-6/7-8
- 5 port solenoid valve conforming to ISO Standard 5599-1
- Interface conforming to size 1 (VS7-6) & size 2 (VS7-8)
- High flow capacity (up to 3140.8 l/min)
- Long service life: 40 million cycles (VS7-8)
- Availability: metal seal; air operated; several function and piping variations;
VQ7-6/7-8
- 5 port solenoid valve conforming to ISO Standard 5599-1
- Interface conforming to size 1 (VQ7-6) & size 2 (VQ7-8)
- Space saving profile and lightweight with high flow capacity (up to 3140.8 l/min)
- Outstanding high-speed response (VQ7-6: 12 msec or less)
- Long service life: 100 million cycles (metal seal)
VP7-6/7-8
- 5 port solenoid valve conforming to ISO Standard 5599-1
- Interface conforming to size 1 (VP7-6) & size 2 (VP7-8)
- High flow capacity (up to 3533.4 l/min)
- Long service life: 16 million cycles (VP7-6)
- Availability: rubber seal; several function and piping variations; non plug-in compatible sub-plate type.
NAMUR Valves: 3 Port / 5 port / Hygienic
VFN212N, NAMUR
Can be directly installed on the industrial valve actuator that complies with NAMUR
Solenoid options: Single or double
Port threads: NPT 1/4, G 1/4
VFN2*20N, NAMUR
- Can be directly installed on the industrial valve actuator that complies with NAMUR
- Solenoid options: Single or double
- Port threads: NPT 1/4, G 1/4
- Allowable voltage fluctuation: -15 to +10 % of rated voltage
VFN2120N-X23/36,
- Hygienic Design Type: resin body with less concaves. Direct cleaning of valve is possible (IP67)
- Voltage: 24 V DC
- Electrical entry: Vertical -X23 or Horizontal -X36
Fieldbus System
EX250
- Centralised serial transmission system for input/output
- Compatible protocols: DeviceNetTM, PROFIBUS DP, CC-Link, EtherNet/IPTM,
EX510
- With increased industry requests for smaller gateway serial interface units using less wiring and offering easier installation, development engineers
EX180
- EX180 serial wiring.CC-Link (32 outputs), DeviceNet (32,16 outputs)Easy attaching/detaching of the SI unit and wiring by connectors.Separated valve power unit
